Question

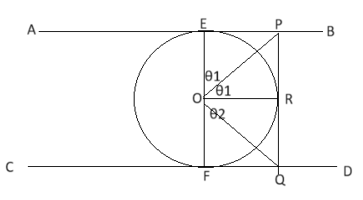

AB and CD are parallel tangents to a circle with center
O. Points P and Q are on AB and CD, respectively, such that PQ touches the circle at R. Find the measure of ∠EOP.Solution
Since PQ is tangent to the circle at R, PO bisects the angles at ∠EOR. Thus, EOP = POR = θ 1 (let) QO bisects the angle at FOR. Thus, FOQ = QOR = θ ₂ (let) Since AB and CD are parallel tangents to the circle, EF must be a straight line. Thus, from the diagram, ∠EOP + POR + FOQ + QOR = 180° 2 ( θ 1 + θ 2 ) = 180° ( θ 1 + θ 2 ) = 90° ∠EOP = 90°
