    Question

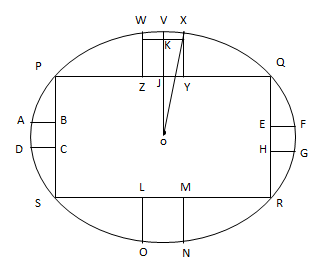

    In the given figure, radius of a circle is 14 √2 cm.

    PQRS is a square. EFGH, ABCD, WXYZ and LMNO are four identical squares. What is the total area (in cm2 ) of all the small squares?
    A 31.36 Correct Answer Incorrect Answer
    B 125.44 Correct Answer Incorrect Answer
    C 62.72 Correct Answer Incorrect Answer
    D 156.8 Correct Answer Incorrect Answer

    Solution

    Radius → 14√2, diameter = 28√2 Side = diagonal / √2  = 28√2 / √2 = 28 Side of square = 28 JO = 14 and JK = side of square small s Ok = 14 + 5 Kr = s/2 , and OX = 14√2 PGT ∆ OKx (S/2)2 + (14 + S)2 = (14√2)2 S2 / 4 + 196 + S2 + 285 = 392 S = 5.6 a2 = (5.6)2 = 31.36 = 31.36 × 4 = 125.44 cm2
