Question

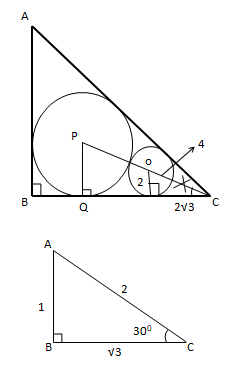

In the given figure, ABC is a right angled triangle. ∠ ABC = 90 0and ∠ ACB = 60 0. If the radius of the smaller circle is 2 cm, then what is the radius (in cm) of the larger circle?
IN ∆ PQC, PC = 2PQ PQ is radius of Bigger circle PC = 2 × R PC = 2R PC = PO +OC PC = R + 2 + 4 2R = R + 2 + 4 R = 6More Geometry Questions
- If O is the orthocentre of ΔABC , if ∠ BOC = 120 0 then what is the measure of ∠ BAC?
- Find the difference between angle and its complement if the angle is three-seventh of its complement.
- In a ΔABC, the internal bisectors of ∠B and ∠C meet at point O. Find the measure of ∠BOC if the measure of ∠BAC = 50 ° .
- Find the area of triangle having sides 5 m, 6 m, and 9 m.
- In the given figure. ABCDEF is a regular hexagon whose side is 6 cm. APF, QAB, DCR and DES are equilateral triangles. What is the area (in cm2) of the shad...
- A regular polygon has an interior angle of 144°. How many sides does the polygon have?
- ABC is an isosceles triangle inscribed in a circle. If AB = AC = 12√5 and BC = 24 cm then radius of circle is
- Consider two concentric circles having radii 17 cm and 15 cm. What is the length (in cm) of the chord, of the bigger circle, which is a tangent to the smal...
- ABCD is a square. P, Q, R and S are points on the sides AB, BC, CD and DA respectively such that AP = BQ = CR = DS. Angle SPQ equal to ?
- In ∆ABC , G is the centroid , AB = 5 cm, BC= 6 cm and AC = 7 cm , find GD, where D is the mid-point of BC?
